#2
318 GiB folder copy test
Since just copying 159 GiB wasn't enough to cause a drop in performance the same 2 folders were copied twice


First copy: 85 seconds

second copy: 141 seconds

sustained copy (drive to drive) speed: 0.92 GiB/s


Admin

Administrator
Moderator
#4

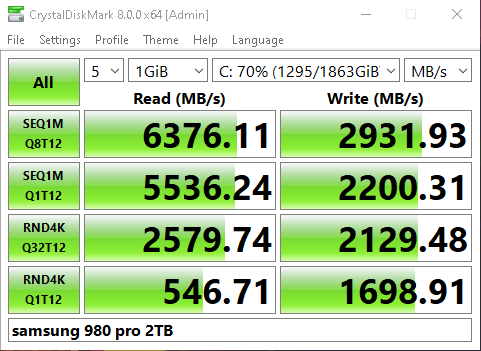

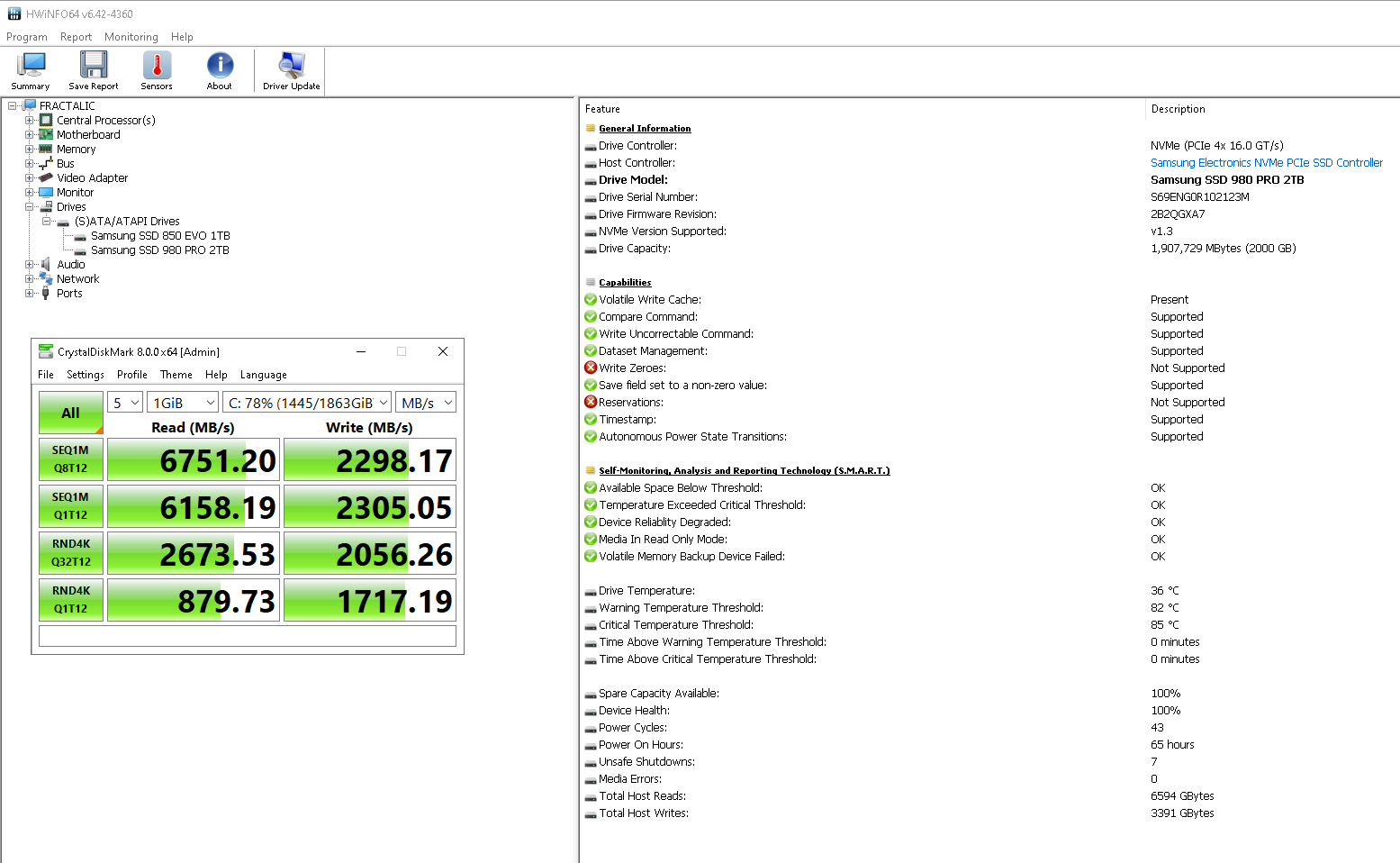

For some reason the 12 threaded sequential performance is worse than the 1 threaded sequential performance.

Random 4K Q32 was of course 100% CPU limited.


Admin

Administrator
Moderator
#5

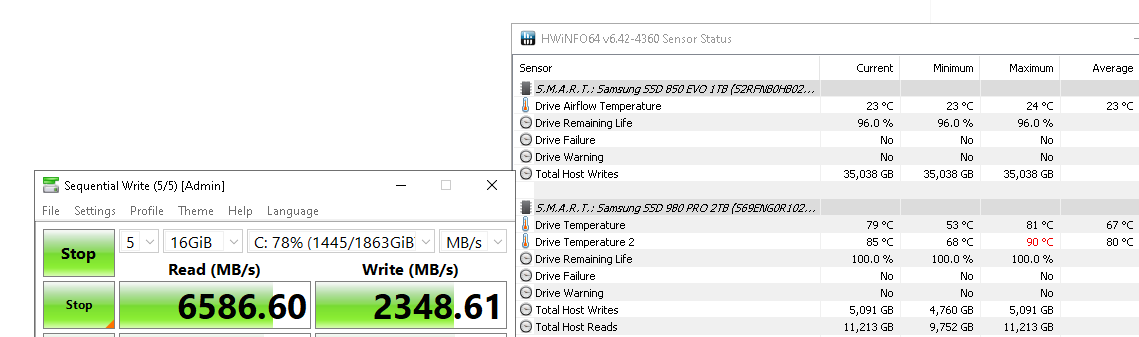

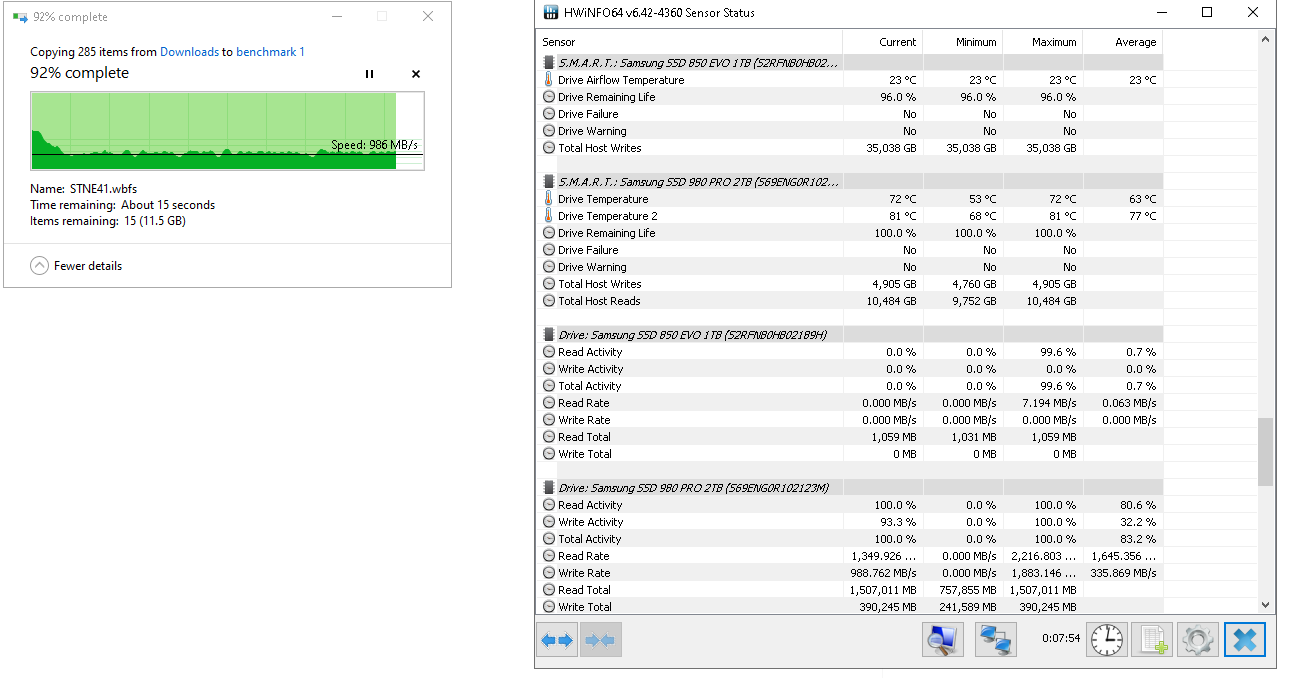

Temperature
Despite hard testing i was never able to get close to the thermal throttle limit, this is the biggest reason why it performed better than the sabrent rocket 4 plus, its unclear if sabrent rocket 4 plus would even be slower given enough cooling.

Unfortunatily the performance was still rather lame but what better option is there?


Admin

Administrator
Moderator
#7
Costumer support was contacted
I contacted them regarding the disappointed sustained write speed and they didn't mention any way to improve that so the issue is probably just lack of a proper driver.

Samsung has not provided anything official for the 980 pro. I asked them how the following reviewer was able to use a proper driver and they just replied with "there is no NVME driver for the 980 pro" even though there clearly is one that you can get working with the drive for better results.

https://www.tweaktown.com/reviews/9731/samsung-980-pro-2tb-2-ssd/index.html


Admin

Administrator
Moderator
#8
Some people are having SLC cache issues
I was worried maybe my drive was defective since other people were having issues but given the bad CPU i am using (r5 3600) there is probably nothing wrong with the drive itself in terms of hardware. The following individual however wasn't as lucky

Rouxls__Kaard via /r/NewMaxx wrote:

Yep, I'm in the same boat then. Out of the box with zero data on it the drive benchmarked at about 5 GB/s in Samsung Magician. Last night I did a benchmark and it's about 1.2 GB/s. I was pretty shocked but learned that this is indeed a thing with these drives. Maybe a dedicated NVMe driver will solve it. Something with the SLC cache not clearing is causing the dip in speeds. I'm no expert, obviously. Read speeds are still blazing fast tho.


Admin

Administrator
Moderator
#9

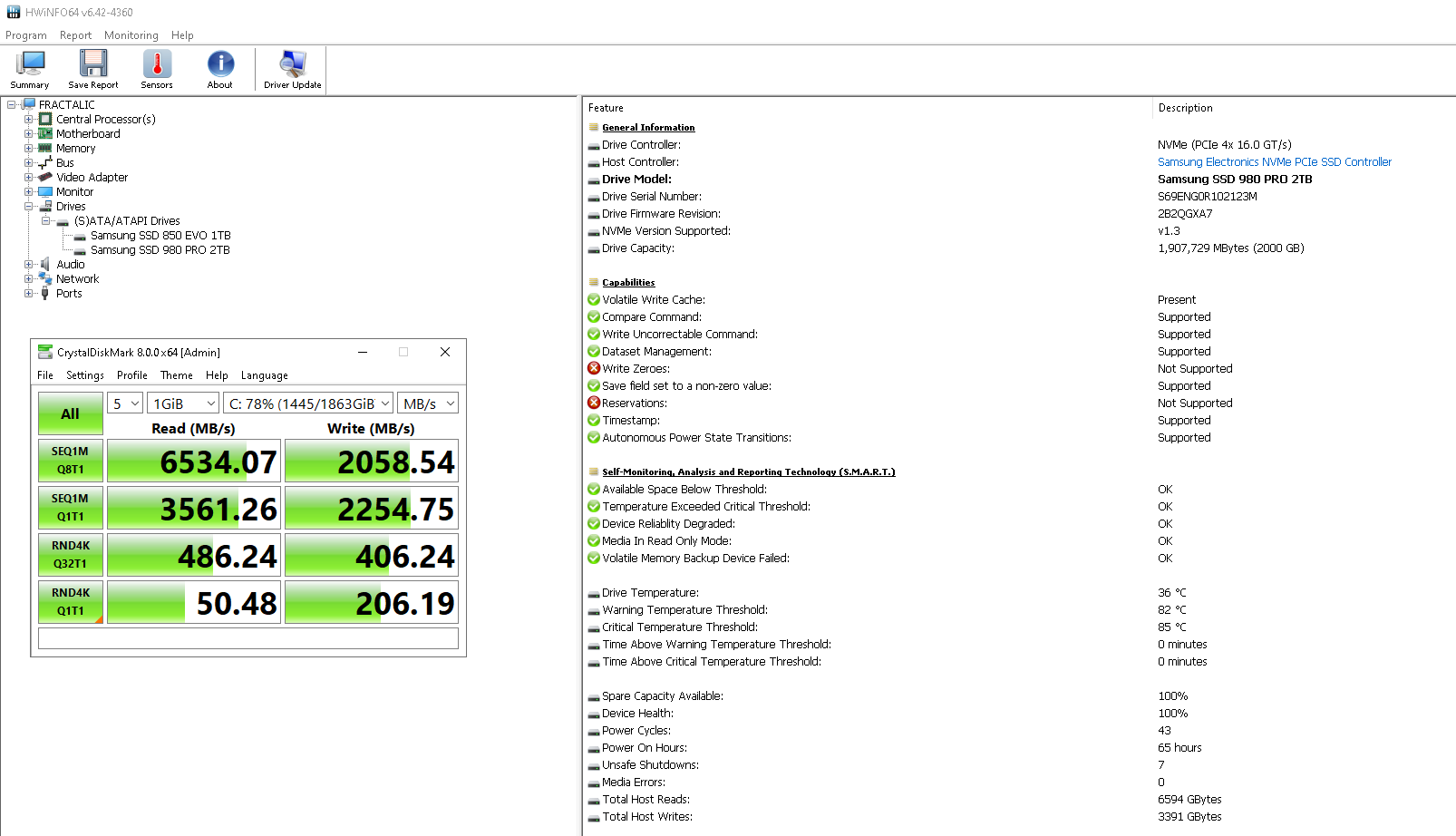

SLC-cache issue replicated
I was able to confirm that when the disk is mostly full it can take a very long time for the SLC-cache to rebuild. The sustained file copy speed seem to improve slightly which can due to the drive no longer being extra slow after recovering from SLC-cache exhaustion (bigger SLC-cache typically mean worse performance after it has been used up). Write was measured to be higher than samsung specified in crystal diskmark.




Despite testing the drive very hard (reading 80 GiB multiple times) performance didn't degrade at all.


Its unclear why the file copy speed in linux and windows is only half that speed.

The more serious issue is: why did random 4K Q1T1 drop to 50.48 ?


Admin

Administrator
Moderator
#11
Sustained write test
To test write speed alone rather than file copy speed 20.2 GiB of video files was read from a ram disk over and over again, it was very hard to get performance below 1.5 GiB/s



This continued until the drive was almost full (14 GiB left), the last picture is the same videos copied within the NVME as comparison.


Admin

Administrator
Moderator
#12

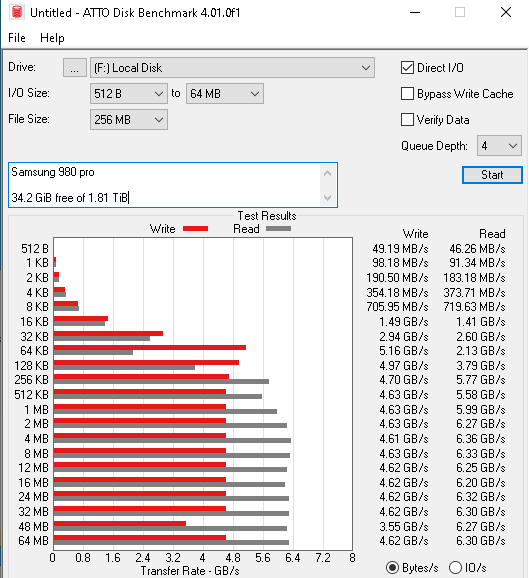

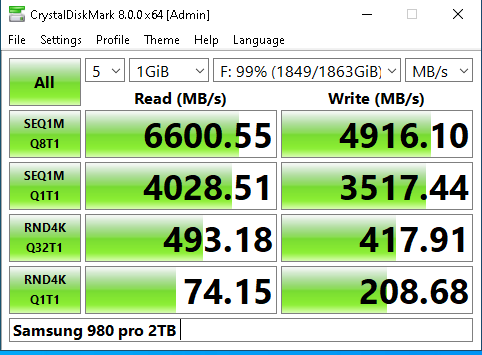

Tests when the disk was almost full
Interestingly the SLC-cache issue disappeared when i booted from another drive only to re-appear when i switched back to booting from the NVME.


It says 34.2 GiB free on the screenshot but one of these should be when only 14 GiB was free.

I then switched to booting from windows 10

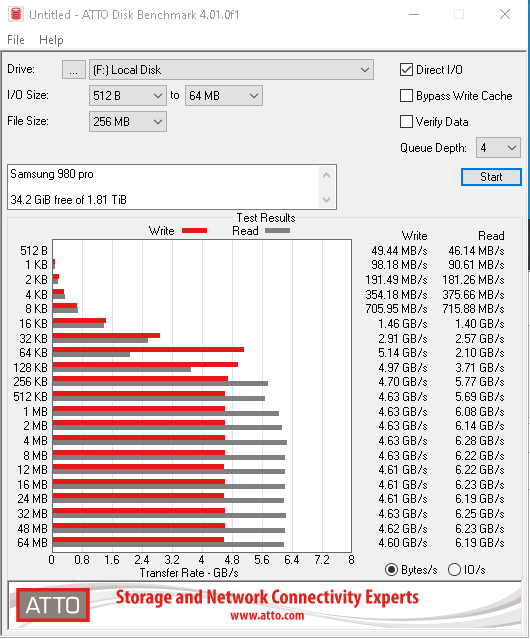

atto99 and windows 10.PNG

Here sustained write performance is tested again.


Admin

Administrator
Moderator
#13






Crystal diskmark by default will take the best of 5 runs instead of the average score which can be a bit misleading.This w


Admin

Administrator
Moderator
#14
Torture test without heatsink
Performance mostly remained good but it did drop down to gen3 speeds in test 4
